Highlight Plant: Planting F/X for Revit® Plugin

Quick video

x

Power Tip: The Planting F/X for Revit Plugin

• Highlight Plant Overview
• Highlighing Plants from the Ribbon
• Highlighting Plants from the Plant Manager
• Using Highlight on Plant Labels
• Removing the Highlights
• Related Webinars
• Troubleshooting

Our Highlight Plant tool provides a quick way to locate all plants of a selected variety that have been placed in your plan in Revit. It's a great method for seeing your design at a glance, error checking, analyzing your design, or planning how to organize your labels.

Highlight Plant works similarly in Revit to how it does in CAD. More information on our Highlight Plant tool in CAD

Highlight Plant Overview

You can select the Highlight tool in two possible ways while in Revit.

Highlighting Plants from the Ribbon

Open our Highlight Plant tool:

Planting F/X ribbon, Highlight button

Click the plant in your plan that you want to highlight.

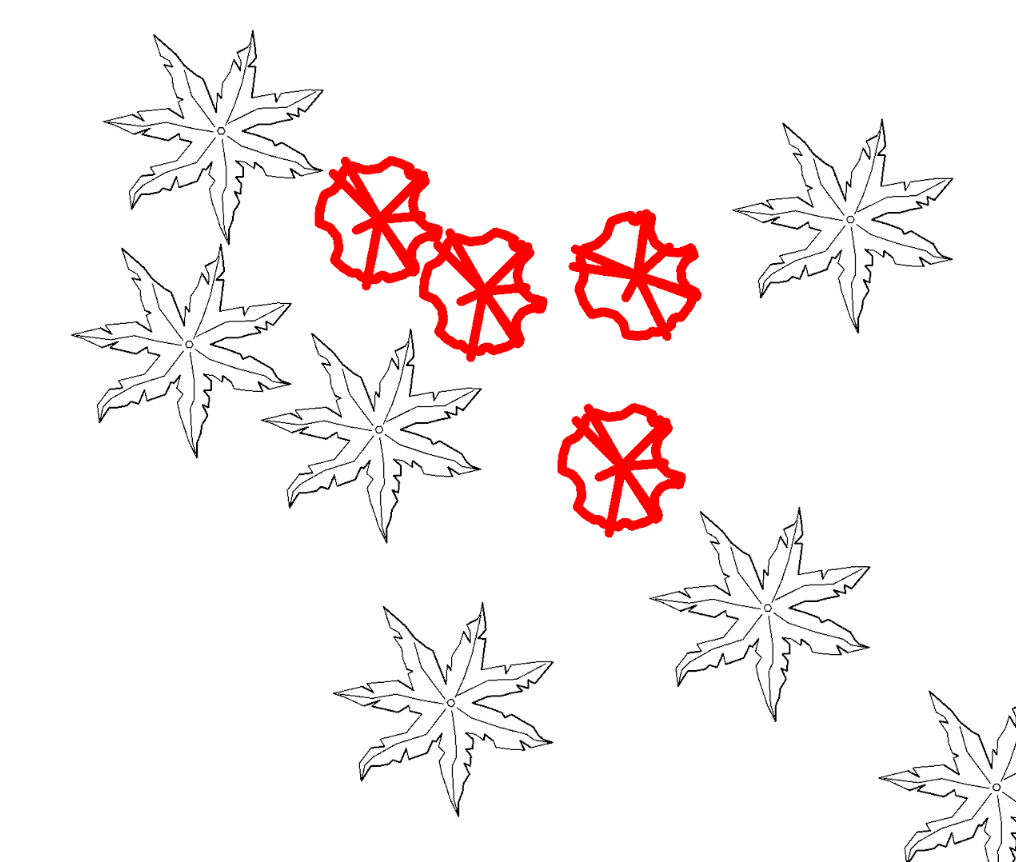

All plants of the selected species will be highlighted in red.



Highlighting Plants from the Plant Manager

You can also access the Highlight tool from the Plant Manager. First, open the Plant Manager:

Planting F/X ribbon, Plant Manager button

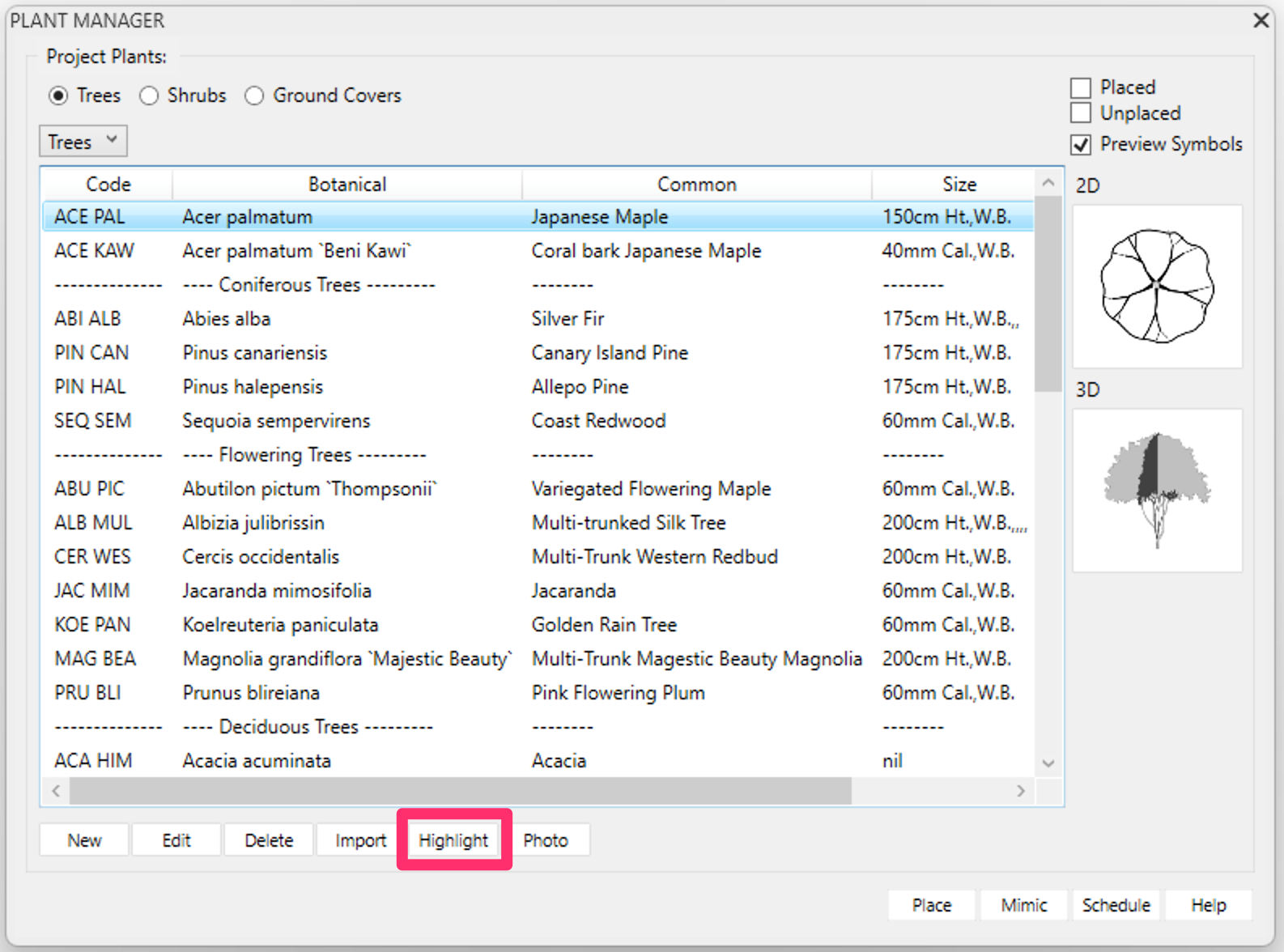

Select the plant you want to highlight, then click the Highlight button.



All plants of that species will highlight in red.

Using Highlight on Plant Labels

You can also use Highlight on a plant label and it will highlight all the plants that label is calling out.



Removing the Highlights

To remove the highlight, select the Highlight tool from the ribbon.

With the tool still active, press the Escape (ESC) key to exit the command.

Related Webinars

• Getting Started with Planting F/X for Revit: Start your journey with Revit and our Planting F/X plugin. We also present our roadmap for future development and show off some new features such as automatic rootball placement and some recent additions to our collections of families and label styles. (1 hr 22 min)
• Intro to Planting F/X for Revit Plugin: As always, our goal with this plugin is to bring the planting design learning curve as low as possible. We cover installation, Planting F/X projects, the Plant Manager, plant placement as families or floors, group labels, Verify Labels, instant schedules, and rendering options with our default family library. (1 hr 12 min)
• Revit for Planting Design: We focus on more tools and show how to tackle more complex workflows in Revit with Planting F/X. We go over customizing the defaults, implementing some labeling strategies, editing floor types, and working with multiple views. We also showcase some new tools and review our most recent development progress. (1 hr 3 min)
• Importing Plans into Revit: If you're being asked to bring your design into Revit and you're a landscape architect or irrigation designer, this webinar is for you. We'll cover first steps, basic orientation of Revit, the pros and cons of certain strategies, importing the DWG linework either 2D or Civil 3D and making toposurfaces and floors, and first-step methods for importing your landscape and irrigation plans. (1 hr 5 min)

Troubleshooting

Issue: Error: Your Land F/X Support ID does not match any on our server. Would you like to activate with a new one?

Issue: LandFX: Your license is invalid and this product has not been activated properly on this system

Issue: "Revit Error: The requested dockable pane has not been created yet" message when using one of our plugins for Revit

Issue: "Error: The Currently Loaded Shared Parameter File is Not the LandFX-Shared-Parameters File" when using one of our plugins for Revit
